| Type JQZ Air Damper Unit (Machine mounting foot) |
| JOZ type air-shock absorber damping, spring is tapered metal parts and assembled pieces of rubber. Rubber capsule done and the compression process, through stomatal sucked into the air and discharge was generated friction dampers. It’s performance characteristics: static deformation, the inherent low frequency, with good shock absorption and cushioning effect. This shock absorber used mainly for vertical load to bear. |
|
|
|
| Type JW Anti Vibration Mount (Machine mounting foot) |
| JW - type shock absorber has a compact, installation size low; Damping value of small, high-efficiency damping characteristics; And the defense -- flange, affordable larger sinusoidal acceleration. The products are widely used in aviation radio equipment, gauges and radar and seismic buffer system. |
|
|
|
| Type JPD Anti Vibration Mount (Machine mounting foot) |
| Three plate-shaped shock absorber stiffness to the other, and JP-type structure similar to a shock absorber. Its performance characteristics are: the nominal load near the narrow region, shock absorber in X, Y, three direction stiffness are approximately equal. The product applies to jet aircraft, off-road vehicles and trains radio equipment, instrumentation, the shock absorption and cushioning. |
|
|
|
| Type KZD Low frequency Adjustable Spring Damper Unit (Machine mounting foot) |
| KZD composite damper load range, the inherent low frequency. As the upper set up adjustable device can regulate the level of equipment, easy installation, using the combination of damping spring. Lateral stiffness is larger level, the Ministry of next spring damping equipped with rubber mats fixed, acoustic, High-frequency vibration isolation and dampen the effect of fluctuations better. The next shock absorber used all just structure, by the strong pressure. |
|
|
|
| Type ZD1 Spring Damper Unit (Machine mounting foot) |
| To further adapt to the modern development of modernization needs, the plant in spring shock absorber damping production on the basis of Improved technology for the design, manufacture ZD-shock absorber damping composite springs, dampers on the springs, Rubber pad combination use, the use of their respective advantages to overcome its shortcomings. With a combined isolation drop rash, low natural frequency, vibration, for the isolation of solid sound, especially for high-frequency shock isolation of solid sound more favorable, positive and negative isolation ideal product. The plant is pioneering a new generation of innovative products practical. The products cover a wide range of load, the longer life expectancy, the use of safe and reliable. ZD-composite shock absorber damping springs installed in three ways : - The next ZD Block with non-slippery surface rubber mats for the interference of small, low center of gravity of the equipment can be directly ZD-shock absorber damping equipment placed on the pedestal, need not fixed : ZD type I only train has allocated a fixed bolts and equipment. ZD II, the circulation has a foundation bolts and the bolt hole can be fixed from top to bottom. Users according to different needs and occasions to choose. ZD-series of products for the application of temperature -40 ° C -110 ° C, normal scope of that work load 2Hz-5Hz natural frequency, damping ratio 0.045-0.065. (Damping spring via a 150 million fatigue test without cracks, without fault, and reached or exceeded the state standard). |
|
|
|
| Type ZD2 Spring Damper Unit (Machine mounting foot) |
| To further adapt to the modern development of modernization needs, in the production of the plants shock absorber damping spring on the basis of technological improvements, design, manufacture ZD-damping composite springs, dampers on damping springs, damping rubber pad combination use, the use of their respective advantages to overcome its shortcomings. With a combined isolation drop rash, low natural frequency, vibration, for the isolation of solid voice, particularly for high-frequency shock isolation of solid voice is more advantageous is positive, negative isolation ideal. The plant is pioneering a new generation of innovative products usable. The products cover a wide range of load, long working life, and the use of safe and reliable. ZD-type shock absorber damping composite springs installed in three ways : - The next ZD Block with non-slippery surface rubber mats for interference small, low center of gravity of the equipment can be directly ZD-type shock absorber damping equipment placed on the pedestal, drew no fixed : ZD type I only dinner equipped with fixed bolts and equipment. ZD-II, respectively begin with the foundation bolts and the bolt hole can be fixed next. According to different user needs and occasions to choose. ZD Series products suitable temperature of -40 ° C -110 ° C, the normal work load that the natural frequency range of 2 Hz - 5Hz, damping ratio 0.045-0.065. (Damping spring by 1.5 million fatigue test without cracks, without fracture, met and exceeded the national standard). |
|
|
|
| Type ZDE Low frequency Adjustable Spring Damper Unit (Machine mounting foot) |
| Database low-frequency shock absorber damping springs with load range, the inherent low frequency, installation is easy. Equipped with a shock absorber on the upper bolt can be fixed with the equipment, can be fixed with the foundation, with a height adjustment bolts Adjustable equipment, and used to test damping, improved vertical and horizontal level of stiffness. (Damping than "0.065) |
|
|
|
| Type YZT Low frequency High damping ratio Spring Damper Unit (Machine mounting foot) |
| YZD type, a series of low-frequency type YZT big shock absorber damping composite spring, As the damper is equipped with different viscous damping efficiency or other damping material, with larger damping ratio, After testing the damping ratio can be reached 0.11 ~ 0.20, and the natural frequency of only 3 ~ 2 Hz. Damping than can effectively restrain the equipment when operating at high speed fluctuations and the boot, Off hours after resonance zone attenuation faster, improve the functioning of the Stability equipment. 300n/ speed can be used to power equipment and above the isolation and damping quality spring two-equipped with rubber mats to reduce noise, solid sound isolation have very good results, is the first new type of vibration isolation products. Easy installation, YZD Debugging with the upper-conditioning installations, YZT equipped with the lower-debugging adjustment bolts If the equipment is not the focus of 1:00 height can be adjusted so that the equipment can reach the level. YZT2-equipped with the external shell from top to bottom, for the installation of outdoor or under special circumstances, to prevent isolation components being corrupted. The main engine for the various units, dynamic test rig, turbine and generator sets, crusher, forging, punch, Rotating reciprocating equipment, fans, pumps and other power equipment active vibration isolation, can also be used for isolation of noise and sophisticated laboratory equipment, instrumentation, the negative isolation. |
|
|
|
| Type YZD Low frequency High damping ratio Spring Damper Unit (Machine mounting foot) |
| YZD series and YZT series type, a series of low-frequency type YZT big shock absorber damping composite spring, As the damper is equipped with different viscous damping efficiency or other damping material, with larger damping ratio, After testing the damping ratio can be reached 0.11 ~ 0.20, and the natural frequency of only 3 ~ 2 Hz. Damping than can effectively restrain the equipment when operating at high speed fluctuations and the boot, Off hours after resonance zone attenuation faster, improve the functioning of the Stability equipment. 300n/ speed can be used to power equipment and above the isolation and damping quality spring two-equipped with rubber mats to reduce noise, solid sound isolation have very good results, is the first new type of vibration isolation products. Easy installation, YZD Debugging with the upper-conditioning installations, YZT equipped with the lower-debugging adjustment bolts If the equipment is not the focus of 1:00 height can be adjusted so that the equipment can reach the level. YZT2-equipped with the external shell from top to bottom, for the installation of outdoor or under special circumstances, to prevent isolation components being corrupted. The main engine for the various units, dynamic test rig, turbine and generator sets, crusher, forging, punch, Rotating reciprocating equipment, fans, pumps and other power equipment active vibration isolation, can also be used for isolation of noise and sophisticated laboratory equipment, instrumentation, the negative isolation. |
|
|
|

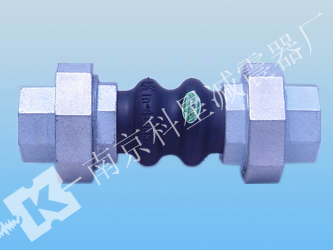

| Type XGD2 Double Spherical Bearing Joint |
| Flexible rubber-XGD take over the multi-level structure ball, absorber capacity, noise abatement good effect; able to withstand higher pressure, and antiknock strength; sufficient flexibility, compression, tension, torsion can be used to play a role in compensating displacement; arbitrary use of 360 ° rotation of the flange and threaded joints, allowing the installation of a more flexible and convenient. In addition, the main XGD products using polar rubber, can be used to heat and oil resistance, corrosion resistance, acid and anti-aging. Scope of application : different types of construction, factories and mines, the chemical industry, petroleum industry waiting for the plumbing vent pipes, water recycling and water drainage pipes, frozen pipes, Anti-corrosion chemical pipeline fire, the compressor piping; and the laboratories, research institutes, ships, warships and other facilities. for protection and management system pipeline project vibration isolation, displacement compensation. |
|
|
